Table of Contents

Dialer Screen........................................................................................... 3

Do Not Disturb (DND)..................................................................................... 3

Settings................................................................................................... 6

Push Notifications............................................................................................ 6

Preferences........................................................................................................ 7

Ringtones..................................................................................................... 8

Call Recording........................................................................................... 12

Contact Sort Order................................................................................... 13

Updating Password........................................................................................ 14

Reset Application............................................................................................ 14

On A Call................................................................................................ 15

Transfer............................................................................................................ 15

Park.................................................................................................................... 16

RingMe.............................................................................................................. 17

Quickdial............................................................................................... 18

Add Quickdial.................................................................................................. 18

Edit Quickdial................................................................................................... 21

Delete Quickdial.............................................................................................. 22

Voicemail............................................................................................... 24

History................................................................................................... 25

Contacts................................................................................................. 27

Messages............................................................................................... 28

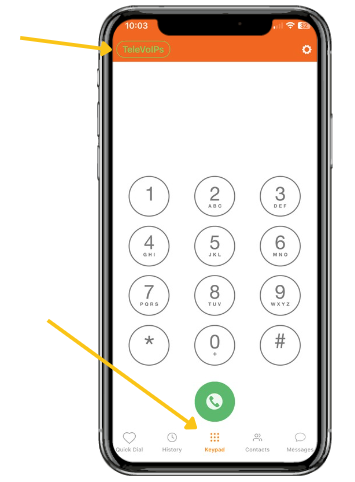

Dialer Screen

 The color of the TeleVoIPs icon means:

Do Not Disturb (DND)

To silence calls, alerts and notifications, you can turn on DND by pressing the TeleVoIPs icon.

The Do Not Disturb screen displays.

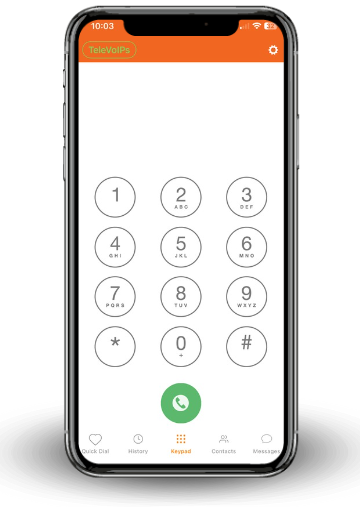

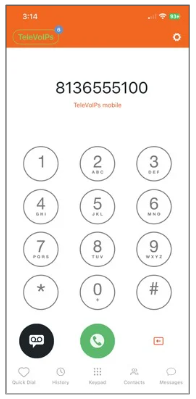

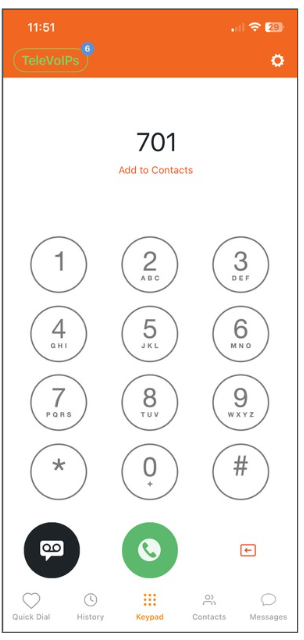

Press the Keypad icon from any screen to get to the dialer screen.

From this screen you can dial local extensions to anyone in your network, or external phone numbers, and access any of the Softphone features.

NOTE:  It is NOT to be used to dial 9-1-1.

Do Not Disturb (DND) (cont’d)

To the right of Do Not Disturb, press and slide the white toggle button to the right.

The toggle area turns green and a red DND icon appears next to the TeleVoIPs icon showing DND is now enabled.

Press Close and you are taken back to the dialer screen.

Dialer Screen (cont’d)

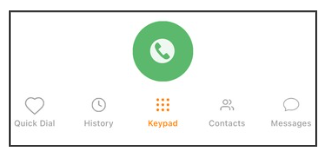

Across the bottom menu bar are the selections for:

1. Messages – Send and read text messages using your business number. NOTE: The Texting feature is an additional monthly cost.

2. Contacts – Search for contacts using the contacts icon.

3. History – Access your call history via the history icon.

4. Quickdial – Access your favorites and view presence.

Settings

Settings allows you to turn incoming calls ON or OFF; change preferences, i.e., ringtones; sound level, call recording, call forwarding, etc.

To access Settings, press the white gears icon on the top right menu bar.

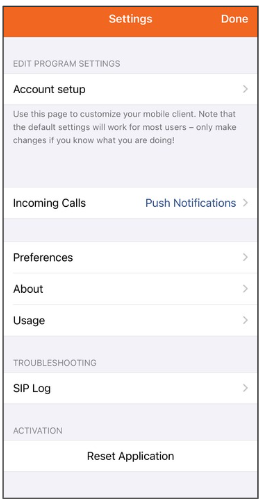

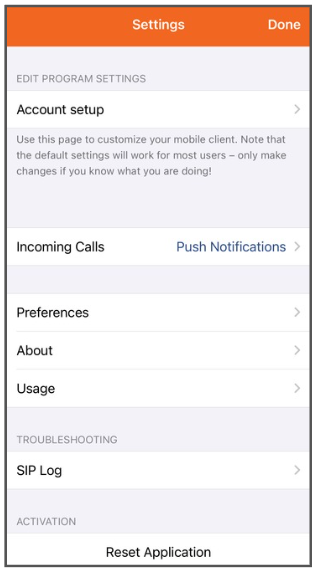

The Settings screen displays.

Settings > Push Notifications

Incoming calls can be turned ON or OFF with Push Notifications.

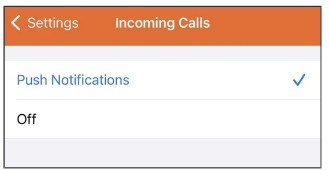

Press Incoming Calls.  The Incoming Calls screen displays.

Press Push Notifications to turn calls ON (a checkmark displays) –or-

Press OFF (a checkmark displays) to turn incoming calls off.

The screen wipes left and returns to the Account Setup screen.

Press Done and the Dialer screen displays.

Settings > Preferences

Within Settings, you can also control other Preferences, i.e., ringtones, sound, and call recording.

NOTE:  All other settings do not need to be used at this time.

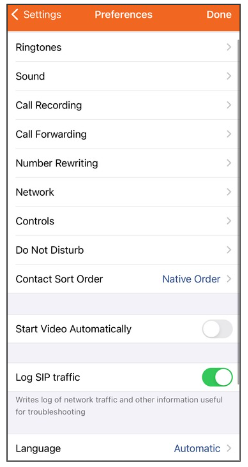

Press Preferences to access the Preferences screen.

To change your ringtone, select Ringtones.

The Ringtones screen displays.

Settings > Preferences > Ringtones

You have the option to change each of the following by pressing:

The screen wipes left to display the ringtones for each category noted above.

Press the ringtone you wish; a checkmark will appear next to your selection.

Press Done and the Dialer screen displays.

Settings > Preferences > Ringtones

Press Sound to control echo cancellation, noise suppression, the level of your sound, speaker mode and advanced sound settings.

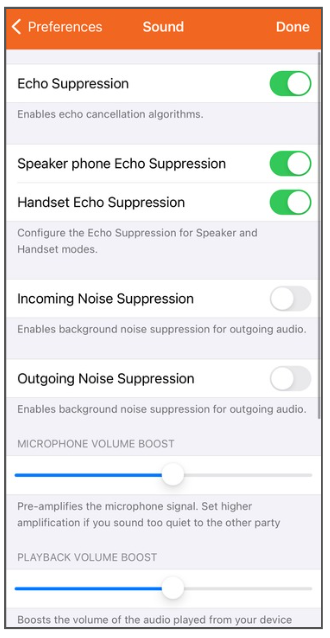

The Sound screen displays.

To turn Echo Suppression ON, press and slide the white toggle button to the right.

The toggle area turns green and suppression is enabled.

To turn OFF Echo, Speaker phone Echo, and Handset Echo Suppression, press and slide the white toggle button to the left.

The toggle area turns white and suppression is now disabled.

Settings > Preferences > Ringtones

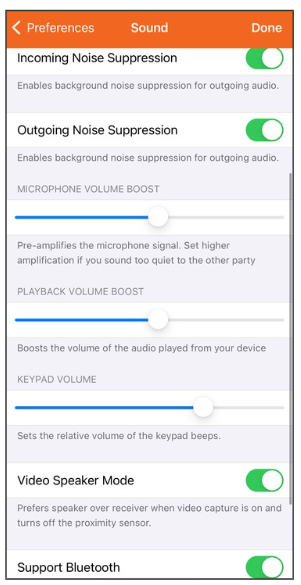

You can also “boost” the sound for a microphone, your playback volume or keypad volume.

Press and slide the white toggle button to the right or left to get just the right volume needed.

When finished, press Done and and the Dialer screen displays.

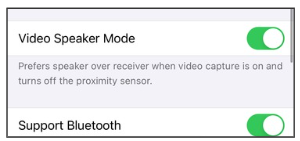

You can also enable Bluetooth headset support by turning this feature ON.

Settings > Preferences > Call Recording

Call Recording allows you to record all calls automatically, if enabled.

Press Call Recording, the Call Recording screen displays.

Record All Calls allows you to turn ON or OFF recording all phone calls.

Slide the white toggle button to the right and all call recording is turned ON. The toggle area turns green.

Delete After allows you to delete each call after a specific time period.

Press Delete After and the Delete After screen displays.

Settings > Preferences > Call Recording

Press the timeframe for how long you want to keep your call recordings.

The screen wipes left and displays the Call Recording screen displaying your selection.

Settings > Preferences > Contact Sort Order

Contact Sort Order can list your contacts by either their first name or last name.

Press Contact Sort Order and the Contact Sort Order screen displays.

Settings > Preferences > Contact Sort Order (cont.)

Press the selection you wish, and the screen wipes left to display the Preferences screen. The sort order selected now displays.

Settings > Updating Password

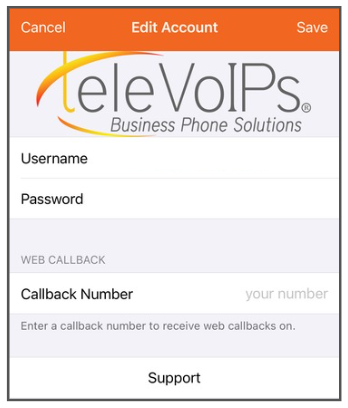

If your TeleVoIPs portal username or password is changed (https://portal.televoips.com/), you will need to update your mobile app account.

Click on account setup.

This will open the previous username and password.

Enter the new credentials and press Done

to update.

Settings > Reset Application

Resetting the application will log out of the account completely. This erases any previously configured settings, call history, and favorites.

**To update account credentials without losing the data mentioned, please reference the “Update Password” section at the top of this page.

On A Call

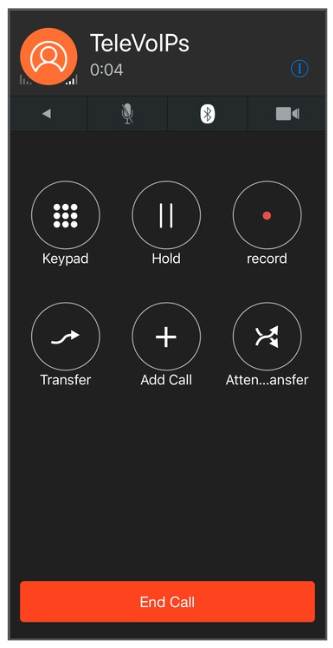

During your call:

To end the call, press End Call.

On A Call > Transfer

To transfer, while on an active call, press the Transfer button.

The call will be placed on hold.

Dial the extension or the external phone number you wish to transfer the call to.

Press the phone button at the bottom of the dialer screen.

Alternatively, once you press the transfer button, you may use the Quickdial screen to transfer a call to someone’s extension.

On A Call > Park

To park a call, you will follow the steps to transfer, but instead of dialing an extension, you will dial the parking lot you wish to send the call to (701, 702, 703, etc. Parking lot numbers may vary.)

Then hit the phone button to send the call to the parking spot.

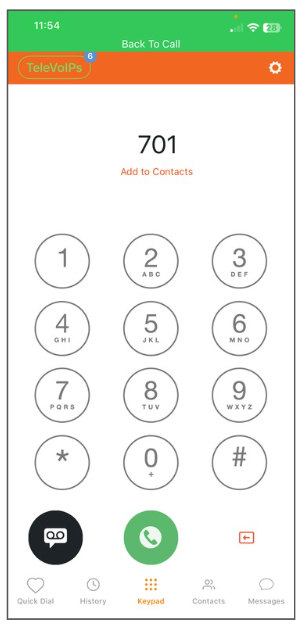

To pick up a parked call, you can simply dial the lot they are in (701, 702, 703, etc. Parking Lot numbers may vary.) and press the phone button at the bottom of the dialer screen.

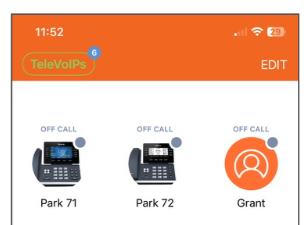

You can also create shortcuts for these parking lots using the Quickdial tab to see what lot someone is parked in and either park or pick up a call using these buttons instead (please reference the Quickdial section of this guide for instructions on how to add).

Presence indicator is green to show a current call is parked there.

On A Call > RingMe

The RingMe feature uses our mobile app to make a cellular voice call to your wireless number instead of a normal data call. This helps to avoid spotty data coverage when using the app but will still show your business phone number and Caller-ID.

To initiate a RingMe Call, enter the phone number you wish to dial (internal or external) and hold down the call button until the call menu opens. Then, select the RingMe option.

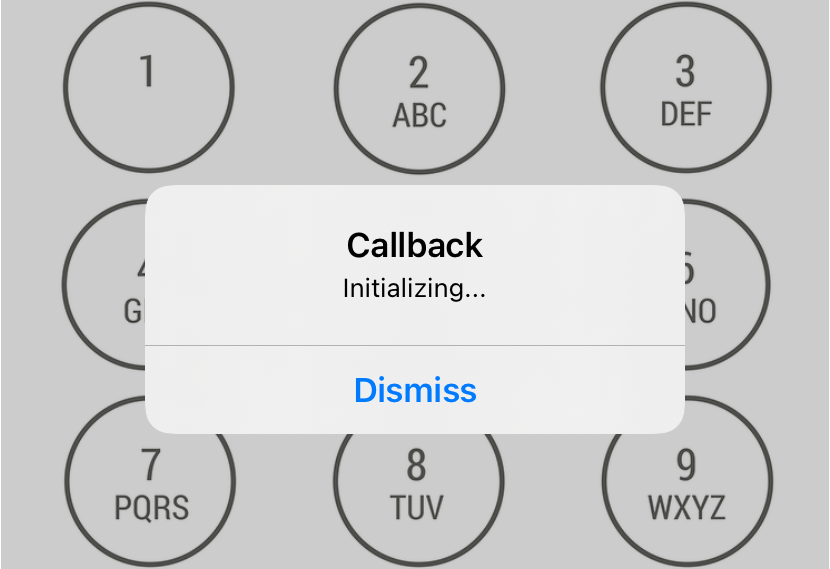

Once dialed, a popup will confirm the RingMe callback is working. You will receive a call inbound to your cell phone. Answer this call. You will be prompted to press any key on your dial pad to complete the RingMe call.

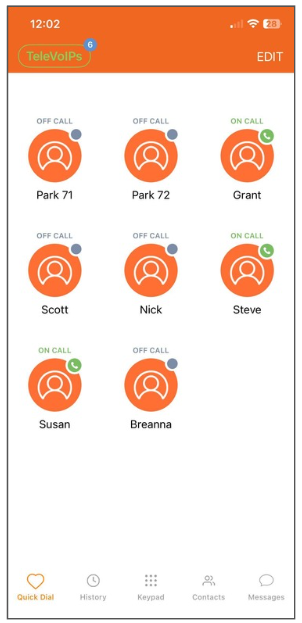

Quickdial

Quickdial is where your favorites are located—those individuals you call on a regular basis.

This makes it easy to find them, instead of searching through Contacts.

Press the Quickdial icon. The Quickdial screen displays.

To call the Favorite, press their icon.

The Call screen displays and the number is automatically dialed.

Quickdial (cont.)

To ADD a favorite, press Edit from the Quickdial screen.

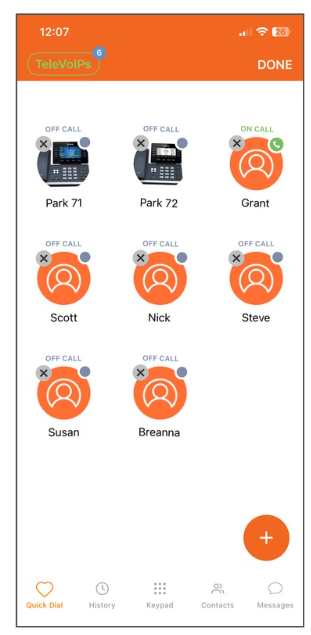

You will see that faded icons were added to the screen; and all icons are vibrating back and forth.

Quickdial (cont.)

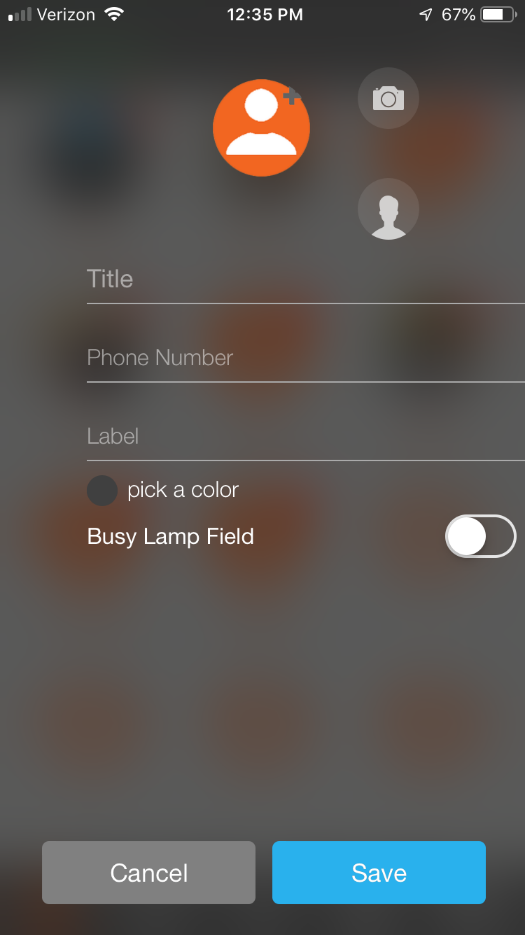

Press the Title field and type the contact’s name when the keyboard displays.

Press the Phone Number field and type in the phone number.

Press the Label field (optional) and type the individual’s company or title. Note that a colored banner displays at the bottom of the contact icon on the Quickdial main screen if you enter any info in this field.

Press pick a color and a screen displays to select a color for the label. After your selection is made, you are redirected back to the Add Favorite screen.

When adding a new favorite, you can turn the Presence (on-call/off-call) or extensions within your own phone network with Busy Lamp Field.

Press and slide the white toggle button to the right; the toggle area turns green when enabled.

Quickdial (cont.)

If you want to add a photo of the contact, press the camera icon.

Then either press:

Select the head icon to create a quick dial from your personal cell phone’s contacts.

Press Save at the bottom of the screen to save the information for the favorite.

To EDIT a favorite, from the Quickdial screen, press Edit.

Quickdial (cont.)

The icons will vibrate, and a (x) icon displays.

Press the icon of the contact you want to edit.

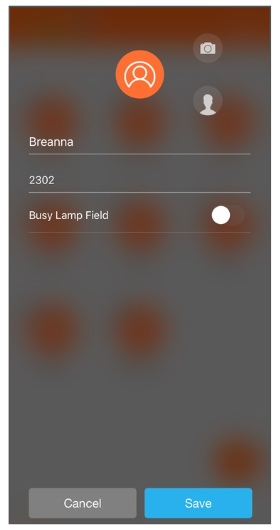

The Edit screen displays to make your updates (see Add a Favorite, page 15).

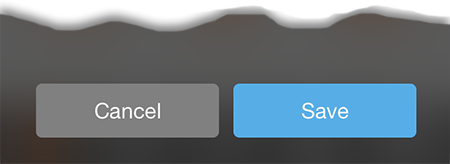

Press Save to save your changes; or Cancel to cancel out of that screen.

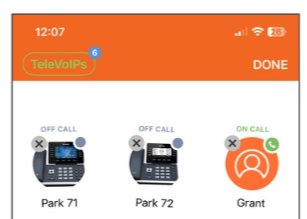

To DELETE a favorite, press the Edit button on the Quickdial screen.

Quickdial (cont.)

Note a x sign icon displays on your contacts’ icons.

Press the favorite’s icon.

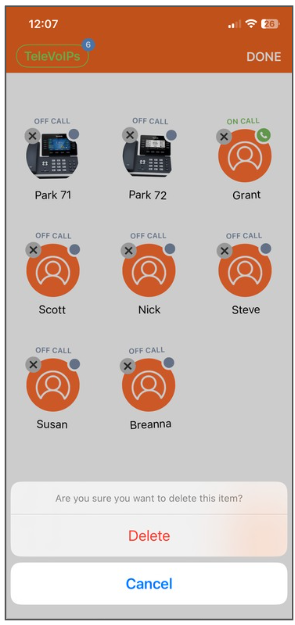

A message displays at the bottom of the screen asking “Are you sure you want to delete this item?”

Press Delete to remove the favorite; or Cancel to cancel out of deleting.

The icon fades and the contact information displayed on the icon is removed.

Quickdial (cont.)

Press Done to get out of editing mode, and the Favorites screen displays.

Voicemail (VM)

When you have been left a voice message, the Voicemail icon displays on the dialer screen.

To access your voicemails, press the VoiceMail icon.

The Voicemail screen displays. 9901 is automatically dialed to access your voicemail.

You will be instructed to enter your password. Press the Keypad icon and enter your password. (It’s the same password as your desk phone at work.)

When the voicemail has finished, follow the audio prompts to save, delete, or forward the message:

Press # > Exit; takes you back to the dialer screen.

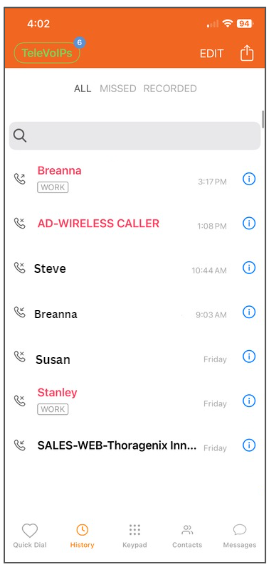

History

History displays all the information on your inbound and outbound calls.

Press the History icon to review
your call history. The Call History screen displays.

At the top of the screen, you can select three choices for Call History:

Calls are shown as:

Press the Information “i” icon to access the Call Details screen.

You can view information for that specific call, i.e., date and time of call, how long the call was, etc.

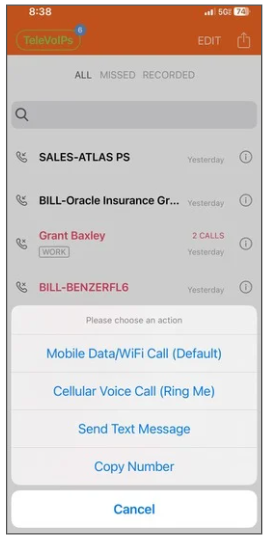

If you press and hold on the call information area, a menu displays with actions you can select.

Select an action to:

Copy Number > Copies that number so it can be pasted in a text message.

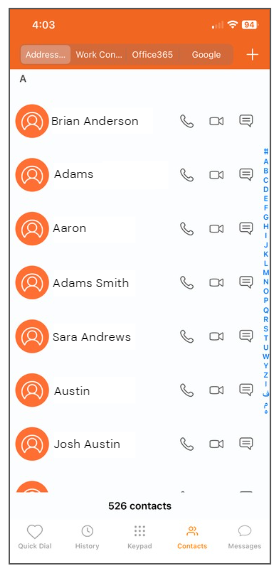

Contacts

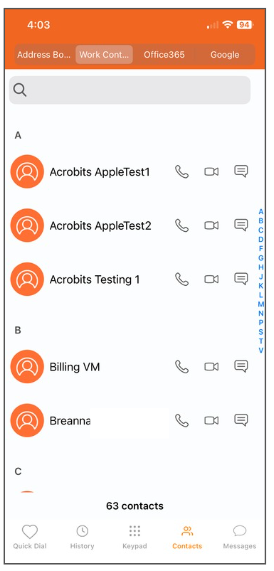

To access your contacts, press the Contacts icon from any screen.

The Contacts screen displays.

To call a contact, type their name in the Search field.

Press the icon for that person after it displays.

The Call screen displays as your contact is automatically dialed.

Contacts can be added or deleted through your iPhone contacts list or through the Quickdial feature.

At the top of the Address Book, pressing Work Contacts will swap to display all extensions in your company directory.

Messages

NOTE: The Texting feature is an additional monthly cost.

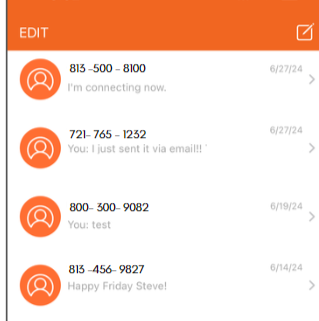

To access your text messages, press the Messages icon from any screen.

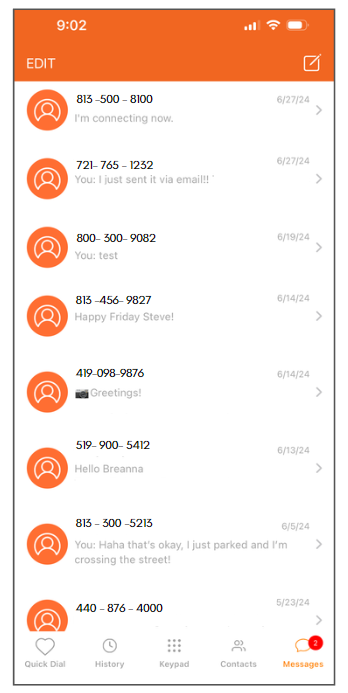

The messages Edit screen displays.

To create a new Text Message, press the pencil icon in the top menu bar.

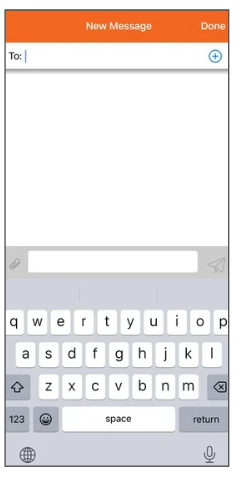

The New Message screen displays.

In the To: text field, type the phone number;

-or-

Press the plus sign icon to select an individual from your contact list.

Type your message in the white text field.

Press Send when done.

Messages  (cont.)

The screen re-displays with your sent text message.

Press <Back to return to the
Messages screen.

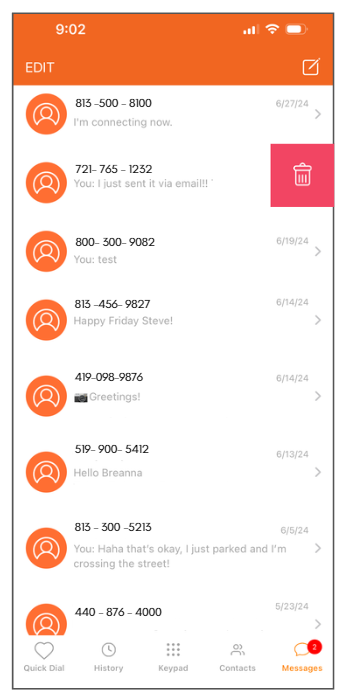

To delete a text message, press on that text message and swipe left.

A red Delete square displays.

Press the red Delete square, and the message is deleted.

Messages  (cont.)

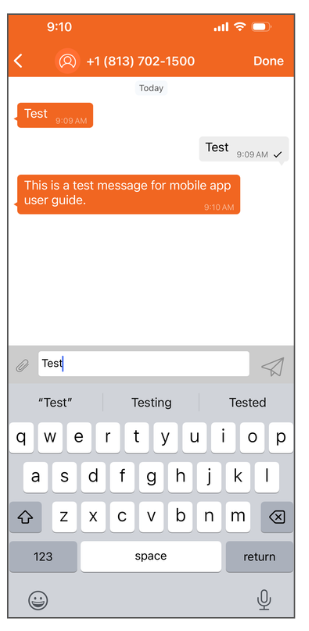

To reply to a text message, press the number/message.

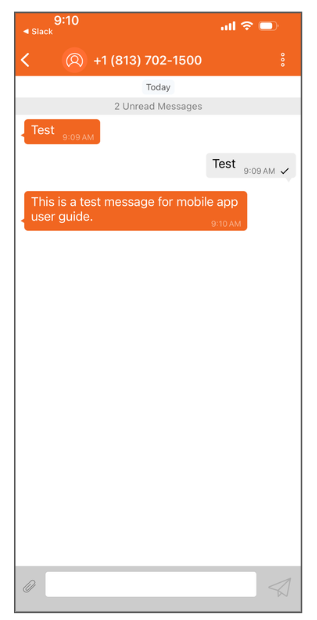

The screen wipes left to display the
Text Message screen.

Press the white text field at the bottom of the screen.

The keyboard displays and the text field moves up.

Messages  (cont.)

Type your message in the white text field.

Then press the blue Send link.

Press <Back to return to the
Messages screen.
